1024mm x 1024 mm Outdoor Perimeter LED Display IP65 Waterproof PH 16

Name: 1024mm x 1024 mm Outdoor Perimeter LED Display IP65 Waterproof PH 16
Brand: Dreamway
Price: 1 USD

Wholesale 1024mm x 1024 mm Outdoor Perimeter LED Display IP65 Waterproof PH 16 from china suppliers

Brand Name : Dreamway

Model Number : P16

Certification : CE,ROHS

Place of Origin : China

MOQ : negotiable

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 2000sq.m/Month

Delivery Time : 20 days after receiving the deposit

Packaging Details : Flight case

Contact Now

1024mm x 1024 mm Outdoor Perimeter LED Display IP65 Waterproof PH 16

Quick Detail:

1. 1024 × 1024 mm;
2. 64 × 64 dots per LED box;
3. 1R 1G 1B LED composition;
4. Over 1,200 HZ;
5. Steel waterproof cabinet with protect cover;
6. About 58kg/sq.m.

Detail Description:

This type P16 is composed with OPTO / SILAN LED chip, MBI5024, more than 8,500 CD brightness;

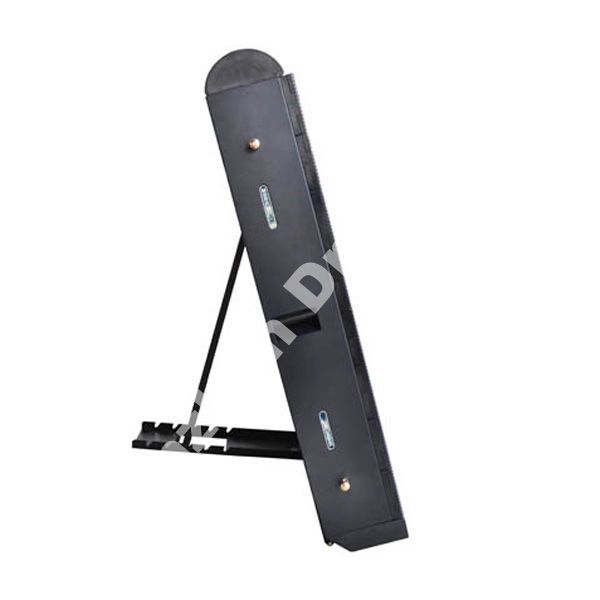

The cabinet is steel waterproof made, with support at the back and protect cover above;
Video splicer equipped to support high resolution of the project length.

Application:

Such perimeter LED display is used for showing ads around stadium during the match.

Specifications:

Pixel Pitch	16 mm
Resolution	3,906 dots/sq.m
LED Chip	OPTO / SILAN
Resolution	3,906 dots/sq.m
Module Pixel	W 16 × H 16
Module Size	W 256 × H 256 mm
Cabinet Material	Steel waterproof cabinet, with support standing and protect cover
Drive Method	Static scan
Brightness	More than 8500 nits/sq.m
Refresh Rate	1200~4000 Hz
Drive IC	MBI5024
Earth Leakage Current	＜2mA
MTBF	＞5,000 hours
Life Span	＞100,000 hours
Power Supply	110V/60HZ and 220V/50HZ interchangeable
Connector	YZK
Controller	NovaStar
Warranty	2 years

1024mm x 1024 mm Outdoor Perimeter LED Display IP65 Waterproof PH 16

High Luminance Perimeter LED Display, 16 mm Perimeter LED Display, Synchronous Perimeter LED Display
